Description

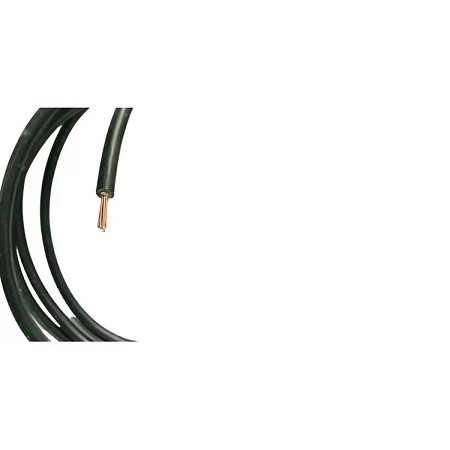

The cathodic protection cable is mainly used in the cathodic protection system of impressed current. a HMWPE or KYNAY insulation covered by an HMWPE jacket can be used.The extruded structure can ensure that the outer surface of the cable can obtain a uniform protective layer, The cable has excellent electrical properties, mechanical properties, heat resistance and aging resistance, environmental stress resistance and chemical corrosion resistance, low water absorption, simple structure, and use Convenient, not limited by the installation drop.
DECHO Metal can provide three types of cathodic protection cables with PVC, HDPE and PVDF insulation.
Features:
It has excellent abrasion, crush, chemical, oil, sunlight and moisture resistance. Both the HMWPE or KYNAY insulation offer additional resistance to corrosive gases and brackish water, and can be used for deep anode ground-bed installations.
Structure:
Conventional voltage: 0.6/1KV; Conductor: CU
Insulation: PVDF KYNAR
Sheath: HMWPE； Colours:Red/Black
|
Size (mm2) |
Maximum Dia Over Conductor(mm) |
Insulation (mm) |
Dia over Core (mm) |
Sheath(mm) |
Outer Diameter (mm) |
Weight(kg/km) |
|
1*6 |
3.12 |
0.51 |
4.5 |
1.4 |
7.3 |
104 |
|
1*10 |
4.05 |
0.51 |
5.5 |
1.4 |
8.3 |
150 |
|
1*16 |
5.10 |
0.51 |
6.5 |
1.4 |
9.3 |
214 |
|
1*25 |
6.40 |
0.51 |
8.2 |
1.4 |
11.0 |
317 |
|
1*35 |
7.50 |
0.51 |
9.3 |
1.4 |
12.1 |
420 |
Welcome to visited DECHO Metal website,if you are interested our hot sale and high quality HMWPE/PVDF/KYNAY Cable for cathodic protection ,Please feel free to contact with us!
